Pope/Condon Lane Outfall Improvements

PLDD PROJECT #9

  • Completion Date: 2007
  • Construction Cost: $66,000

PLDD replaced a corroded bank discharge with an overbank discharge. An existing storm drain that extended east from the intersection of Pope Way and Condon Lane discharged at the top of the bluff creating an erosion hazard. The existing drain was located on private property.

The project obtained easement from Condon Lane to the bluff to allow install of a new 14-inch outfall, a portion of which was slip lined into the existing drain pipe. An HDPE above grade pipe extended from the drain at the top of the bluff and discharged into a 48-inch diameter catch basin/diffuser structure located on the beach below the bluff.

The pictures show the work being done to install a new drain pipe and place a catch basin onto the beach to drain the storm water in a manner to avoid damage to the beach.

new drain pipe
work in progress

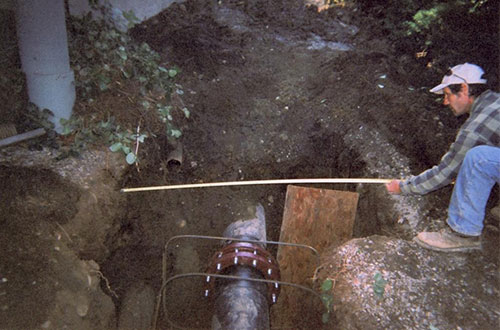

anchor set for new pipe

This second set of pictures shows the work being done to install a new drain pipe and place a catch basin onto the beach to drain the storm water in a manner to avoid damage to the beach.

bluff below Condon Lane
catch basin on beach

These are pictures of the catch basin on the beach at the foot of Pope and Condon Lane.

The design is very similar to the system at Libby Court (project #3).

catch basin on beach in 2013
